Marine propulsion systems are integral to the performance, maneuverability, and efficiency of boats and ships. Among the various types available, Z-drives, V-drives, and surface drives are widely used for different applications, each offering unique benefits and limitations. This article provides an in-depth comparison of these three propulsion systems, examining their mechanisms, applications, advantages, and disadvantages.
A Z-drive is a type of marine propulsion system that uses an azimuth thruster, allowing the propeller to rotate 360 degrees around a vertical axis. The name "Z-drive" comes from the shape of the drive unit, which resembles the letter "Z" when viewed from the side.
Components: The Z-drive consists of a vertical drive shaft connected to the engine, which then transfers power to a horizontally mounted propeller via a bevel gear mechanism. The entire drive unit can be rotated to direct the thrust in any direction, providing exceptional maneuverability (Marine Insight).
Z-drives are commonly used in tugboats, offshore vessels, and dynamic positioning ships where precise control and maneuverability are critical. They are also popular in ferries and harbor crafts.
360-Degree Maneuverability: The ability to rotate the drive unit provides excellent control, allowing vessels to move in any direction without needing to change the engine's power output.
Improved Efficiency: Z-drives offer better fuel efficiency and reduced wear on the engine by allowing optimal thrust alignment with minimal resistance.
Ease of Maintenance: Z-drives are typically easier to maintain because the drive units can be raised out of the water for inspection and repairs without the need for dry docking.
Complexity: The sophisticated design of Z-drives makes them more mechanically complex, leading to higher initial costs and maintenance requirements.
Vulnerability: Z-drives are more exposed to underwater damage, especially in shallow or debris-filled waters.
A V-drive is a type of marine propulsion system where the engine is placed near the stern of the boat, facing forward. Power is transmitted through a transmission system that redirects the drive shaft to run aft, creating a "V" shape.
Components: The engine is mounted backward in the stern, and the drive shaft is redirected forward before being turned back to the propeller via a gearbox. This setup allows for more efficient use of space in the boat (Boating Magazine).
V-drives are commonly found in inboard motorboats, particularly in recreational boats like ski boats, wakeboarding boats, and some high-performance yachts.
Space Efficiency: By placing the engine at the stern, V-drives free up space in the middle of the boat, allowing for more interior space and better weight distribution.
Improved Performance for Watersports: The weight distribution and thrust characteristics of V-drives make them ideal for activities like waterskiing and wakeboarding, where a strong and consistent wake is desirable.
Lower Center of Gravity: V-drives contribute to a lower center of gravity, which improves the stability and handling of the vessel, especially in high-speed conditions.
Accessibility: Maintenance on a V-drive system can be more challenging due to the engine's location in the stern, which may require more effort to access.
Efficiency: V-drives can be slightly less efficient than straight-shaft inboard engines due to the additional gears and the angle at which power is transmitted.

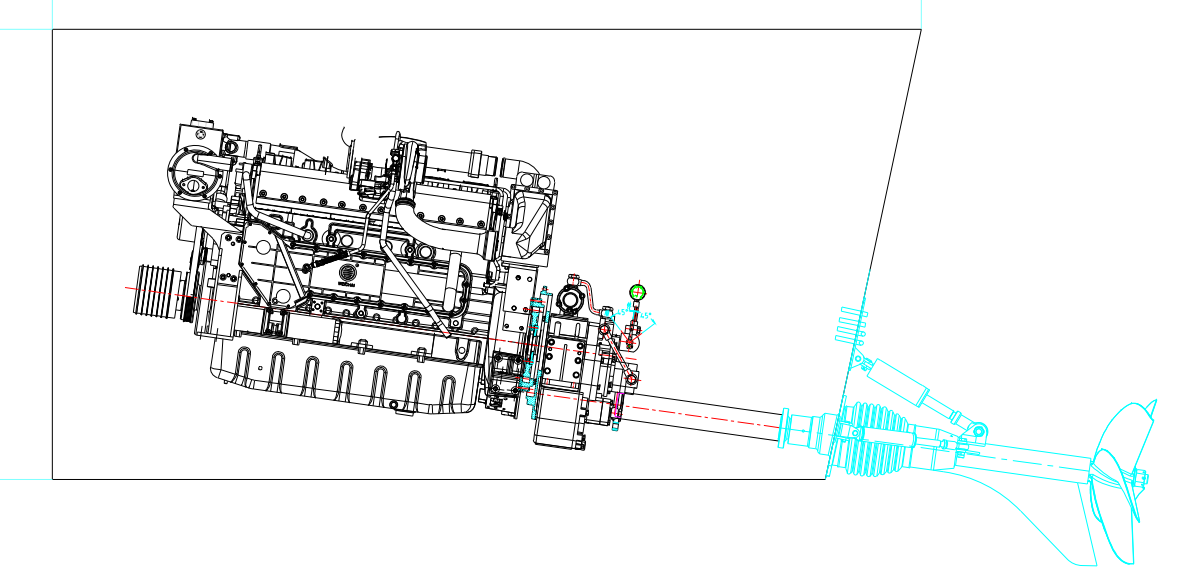

Surface drives are propulsion systems where the propeller operates partially submerged at the water's surface. This design minimizes drag and allows for high-speed performance, making them a popular choice in racing boats and high-performance vessels.
Components: The surface drive system typically consists of an adjustable drive shaft that positions the propeller so that only half of it is submerged. This configuration reduces hydrodynamic drag and increases thrust efficiency at high speeds (Marine Insight).
Surface drives are commonly used in high-speed racing boats, military craft, and high-performance yachts where speed and agility are critical.
High-Speed Performance: Surface drives are highly efficient at high speeds due to reduced drag, allowing for greater acceleration and top speed.
Adjustability: The angle of the drive can often be adjusted to optimize performance based on speed and sea conditions.
Fuel Efficiency at High Speeds: Due to the reduced resistance, surface drives can be more fuel-efficient than traditional submerged propeller systems when operating at high speeds.
Complexity and Cost: Surface drives are more mechanically complex and expensive, requiring specialized maintenance.
Handling in Rough Seas: While surface drives excel in calm waters, they can be less effective in rough conditions, where maintaining consistent propeller contact with the water is challenging.
Operational Limitations: Surface drives are less effective at low speeds and can be difficult to maneuver in tight spaces, making them less suitable for everyday boating.
Maneuverability:
Z-Drive: Offers the highest level of maneuverability with 360-degree thrust direction.
V-Drive: Provides good maneuverability but is more limited compared to Z-drives, focusing on straight-line performance and stability.
Surface Drive: Prioritizes high-speed efficiency over maneuverability, with limited control at lower speeds.
Performance:
Z-Drive: Efficient at various speeds, particularly in dynamic positioning and complex maneuvers.
V-Drive: Excels in watersports and recreational boating with strong, consistent thrust.
Surface Drive: Optimized for high-speed performance, especially in calm waters, where drag reduction is critical.
Complexity and Maintenance:
Z-Drive: Mechanically complex, requiring specialized maintenance but offering easy access for repairs.
V-Drive: Simpler than Z-drives but with some access challenges due to engine placement.
Surface Drive: Highly complex and expensive, with demanding maintenance needs.
Applications:
Z-Drive: Ideal for vessels requiring precision control, such as tugs and dynamic positioning ships.
V-Drive: Common in recreational boats designed for watersports and leisure cruising.
Surface Drive: Best suited for high-speed boats where performance at top speeds is the priority.
Z-drives, V-drives, and surface drives each have distinct advantages and are suited to specific marine applications. Z-drives excel in maneuverability and are commonly used in vessels that require precise control. V-drives offer a balance of performance and space efficiency, making them ideal for recreational boats focused on watersports. Surface drives, on the other hand, are designed for high-speed performance, providing unmatched efficiency in racing and high-performance boating.
Choosing the right propulsion system depends on the specific needs of the vessel, including the intended use, performance requirements, and maintenance capabilities. By understanding the differences among these three types of drives, boat owners and operators can make informed decisions to optimize their vessels' performance and functionality.
