BH750 is a surface drive system with a diameter of 750mm, with an engine power between 400-600hp, and the suitable boat weight is 11-45T

Design Advantage

A pair of TDS surface drive can lift and steer system
A pair of high anti-corrosion, high toughness and strength two-way special stainless steel surface perforated propellers
Hydraulic and steering equipment
The body i s made of all 316L anticorrosive stainless steel
Indicators and sensors
Double hydraulic cylinder
Two kinds of adjustable movable and fixed semi-submerged propeller systems
Universal ball cage connection design

INQUIRY

Performance Advantages

The water intake of the surface piercing propeller is half of the water intake
15% to 30% faster than traditional systems
15% to 30% increase in fuel efficiency
The propeller i s ventilated to the water surface, thereby reducing noise and destructive hull and pillar erosion.
The maintenance requirements are low, and the propeller immersion can be adjusted in progress.

TDS Surface Drive Certification

Our propulsion system can pass the certification of major classification societies: ABS, CCS IS09001：2015/IS09001:2016 certification, and its activities incIude: marine supporting products (movabIe surface drive, fixed surface drive, gear box) design, development and manufacturing.

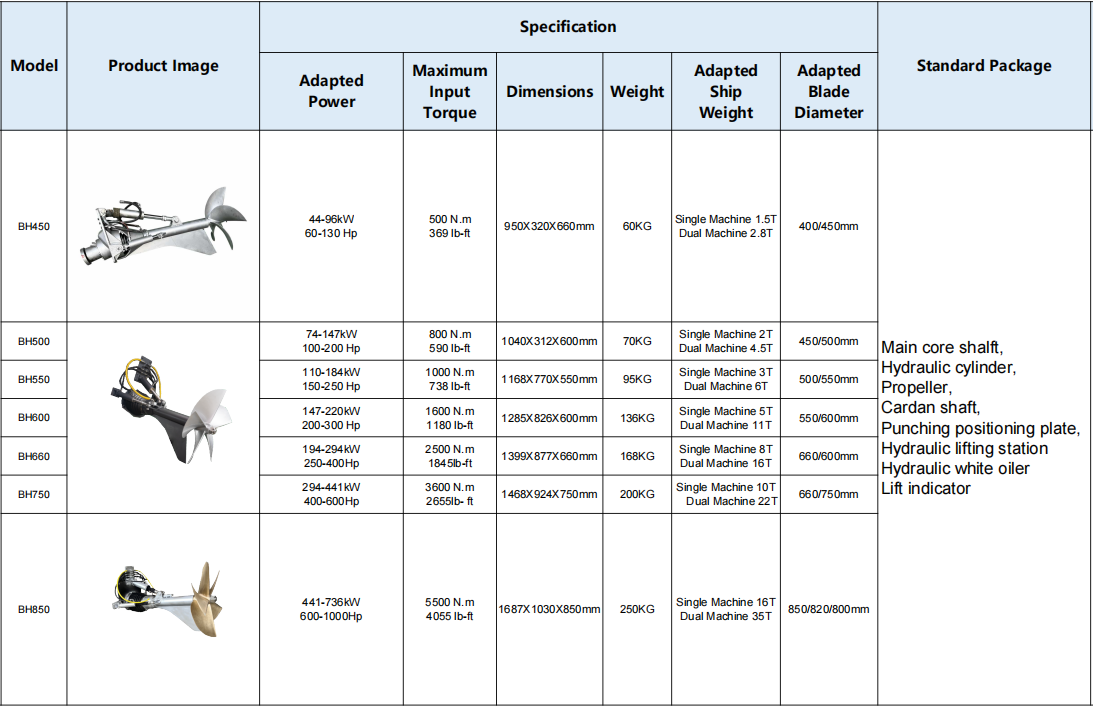

Product Paramater

Adaptable blade diameter

Adapted power

Input torque

Input RPM

Dimensions

Weight

Suitable ship weight

Standard accessories

BH400

400mm

60Hp-100Hp

380 N.m

3000r/m

950X300X650mm

45KG

Single machine 0.9T
Dual machine 1.8T

Universal drive shaft/ 12V hydraulic lifting station/ oil pot/ oil shortage alarm light/ anti-corrosion zinc block

BH450

400/450mm

80Hp-130Hp

500 N.m

3000r/m

950X320X660mm

60KG

Single machine 1.5T
Dual machine 2.5T

Universal drive shaft/ 12V hydraulic lifting station/ oil pot/ oil shortage alarm light/ anti-corrosion zinc block

BH500

450/500mm

100Hp-200Hp

800 N.m

3000r/m

1040X312X600mm

70KG

Single machine 2T
Dual machine 4T

Universal drive shaft/ 12V hydraulic lifting station/ oil pot/ oil shortage alarm light/ anti-corrosion zinc block

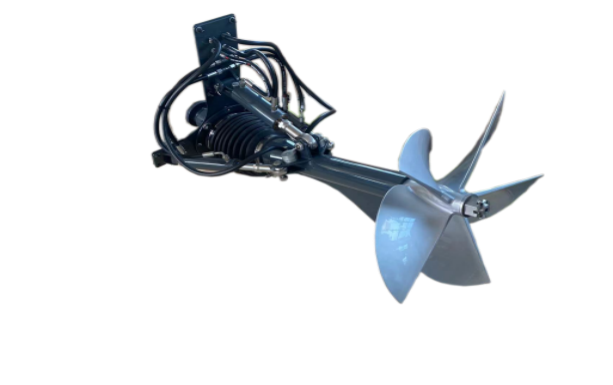

BH550

550mm

150Hp-250Hp

1000 N.m

2800r/m

1168X770X550mm

95KG

Single machine 3T
Dual machine 6T

Universal drive shaft/ 24V hydraulic lifting station/ oil pot/ oil shortage alarm light/ anti-corrosion zinc block

BH600

600mm

200Hp-300Hp

1600 N.m

2500r/m

1285X826X600mm

136KG

Single machine 5T
Dual machine 11T

Universal drive shaft/ 24V hydraulic lifting station/ lift table/ oil pot/ oil shortage alarm light/ anti-corrosion zinc block

BH660

660mm

250Hp-400Hp

2500 N.m

2200r/m

1399X877X660mm

168KG

Single machine 6.5T
Dual machine 16T

Universal drive shaft/ 24V hydraulic lifting station/ lift table/ oil pot/ oil shortage alarm light/ anti-corrosion zinc block

BH750

660/750mm

400Hp-600Hp

3600 N.m

2000r/m

1468X924X750mm

200KG

Single machine 11T
Dual machine 22T Four machine 45T

Universal drive shaft/ 24V hydraulic lifting station/ lift table/ oil pot/ oil shortage alarm light/ anti-corrosion zinc block

BH850

850/800mm

600Hp-1000Hp

5500 N.m

2000r/m

1687X1030X850mm

250KG

Single machine 15T Dual machine 40T Four machine 90T

Universal drive shaft/ 24V hydraulic lifting station/ lift table/ oil pot/ oil shortage alarm light/ anti-corrosion zinc block

Download List

Name	Introduction	Size	Downloads	Update	Category	Thumbnail	Copy Link	Download
BH750.pdf		7.50MB	56	2022-11-28	Surface Paste Drawings		Copy Link https://www.surfacedrive.net/phoenix/admin/download?fileId=aPKfUVplNgFE&dp=GvUApKfKKUAU	Download

Recommended TF Series Gearbox

LQ85

LQ300

LQ300

LQ300

	LQ300
Input speed（r/min）	1000-3000
Input power （K/w）	300-735
Transmission capacity （kw/r/min）	0.35
(Increase) Reduction ratio	1-2.38
Bearing propeller thrust （kN）	50
Center distance	203
Net weight (kg)	285
Manipulation form	Electronically controlled or push-pull flexible shaft
Input connection	Housing SAE 1#, flywheel SAE 14
