BH450 is a surface drive system with a diameter of 450mm, with engine power between 60Kw-96Kw, and suitable boat weight is 1.2-2.5T

Design Advantage

  • A pair of TDS surface drive can lift and steer system
  • A pair of high anti-corrosion, high toughness and strength two-way special stainless steel surface perforated propellers
  • Hydraulic and steering equipment
  • The body i s made of all 316L anticorrosive stainless steel
  • Indicators and sensors
  • Double hydraulic cylinder
  • Two kinds of adjustable movable and fixed semi-submerged propeller systems
  • Universal ball cage connection design

Performance Advantages

  • The water intake of the surface piercing propeller i s half of the water intake
  • 15% to 30% faster than traditional systems
  • 15% to 30% increase in fuel efficiency
  • The propeller i s ventilated to the water surface, thereby reducing noise and destructive hull and pillar erosion.
  • The maintenance requirements are low, and the propeller immersion can be adjusted in progress.

TDS Surface Drive Certification

Our propulsion system can pass the certification of major classification societies: ABS, CCS IS09001:2015/IS09001:2016 certification, and its activities incIude: marine supporting products (movabIe surface drive, fixed surface drive, gear box) design, development and manufacturing.
Product Paramater
  Adaptable blade diameter Adapted power Input torque Weight

Suitable ship weight

Standard accessories

BH400 400mm

60Hp-120Hp

45Kw-88Kw

380 N.m
45KG
Single machine 0.9T
Dual machine 1.8T
Cardan shaft
Hydraulic lift station
Oil pot (alarm)
BH450 400/450mm 80Hp-130Hp
 60Kw-96Kw
500 N.m
60KG
Single machine 1.2T
Dual machine 2.5T
Cardan shaft
Hydraulic lift station
Oil pot (alarm)
BH500 450/500mm 100Hp-200Hp
73Kw-145Kw
800 N.m
70KG
Single machine 2T
Dual machine 4T
Cardan shaft
Hydraulic lift station
Oil pot (alarm)
BH550 550mm 150Hp-250Hp
110Kw-184Kw
1200 N.m
85KG
Single machine 3T
Dual machine 6T
Cardan shaft
Hydraulic lift station
Oil pot (alarm)
BH600 600mm 200Hp-300Hp
145Kw-220Kw
1600 N.m
120KG
Single machine 5T
Dual machine 10T
Cardan shaft
Hydraulic lift station
Oil pot (alarm)
BH660 660mm 250Hp-400Hp
184Kw-295Kw
2500 N.m
150KG
Single machine 6.5T
Dual machine 15T
Cardan shaft
Hydraulic lift station
Oil pot (alarm)
BH750 660/750mm 400Hp-600Hp
295Kw-440Kw
3600 N.m
200KG
Single machine 9T
Dual machine 22T
Cardan shaft
Hydraulic lift station
Oil pot (alarm)
BH750L 750mm 600Hp-1000Hp
440Kw-735Kw
5500 N.m
260KG
Single machine 12T
Dual machine 25T
Cardan shaft
Hydraulic lift station
Oil pot (alarm)

Download List

Name Introduction Size Downloads Update Category Copy Link Download

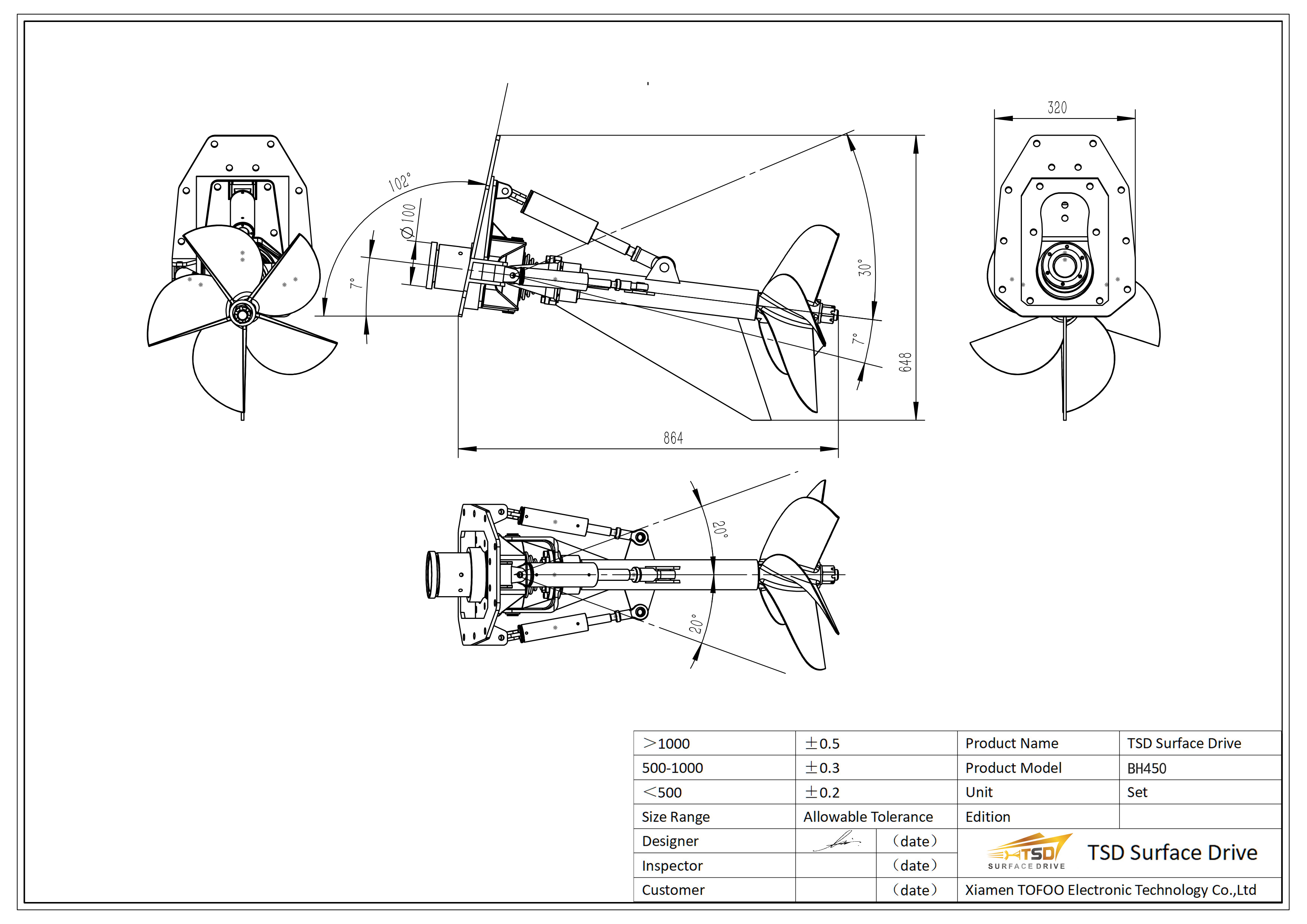

BH400.pdf 1.81MB 20 2022-06-09 Surface Paste Drawings download Copy Link Download

Recommended TF Series Gearbox

  •

     LQ85

     Input speedr/min

     1500-4000

     Input power K/w

     60-140

     Transmission capacity kw/r/min

     0.04

     (Increase) Reduction ratio

     0.8-2.03

     Bearing propeller thrust kN

     9

     Center distance

     100

     Net weight (kg)

     62

     Manipulation form

     Push-pull flexible shaft

     Input connection

     Housing SAE 4#, 3# flywheel SAE 10, 8

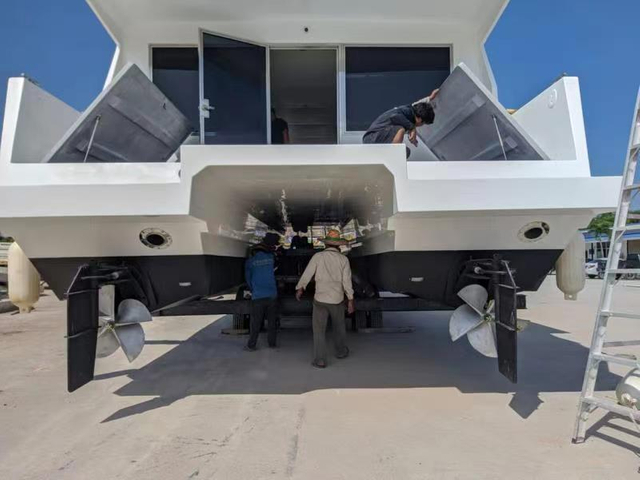

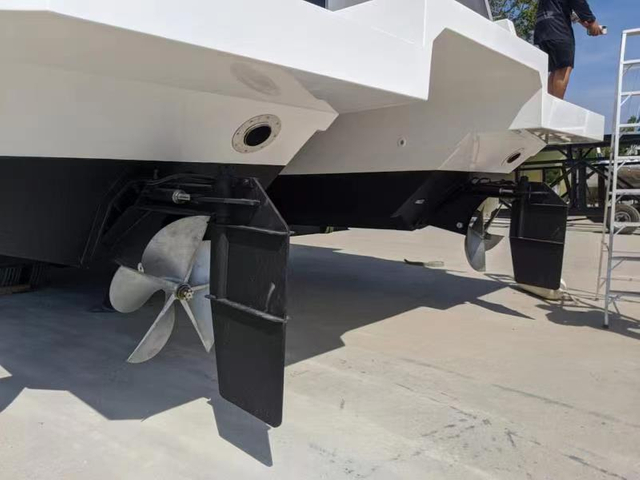

Related Installation Cases
