Home / TSD Surface Drive / TSD Surface Drive / BG660

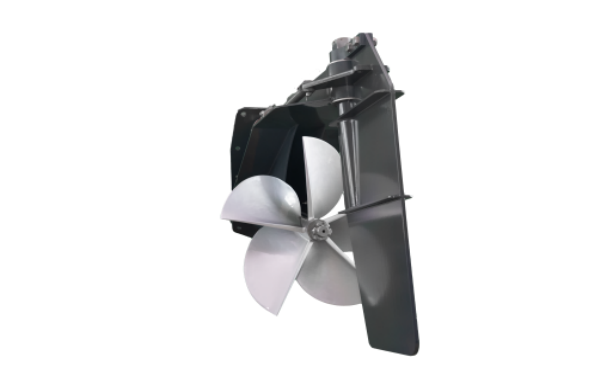

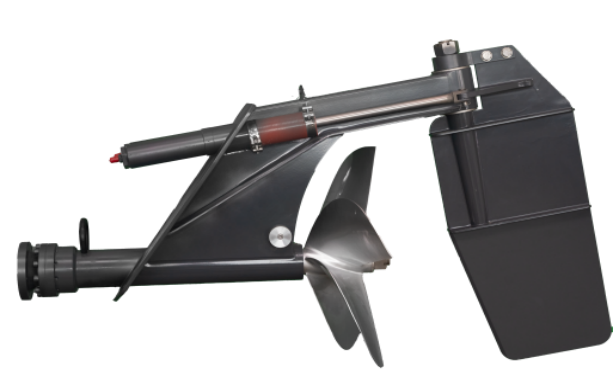

BG660 is a surface drive system with a diameter of 660mm, with an engine power between 250-400hp, and the suitable boat weight is 6-15T

Design Advantage

  • A pair of TDS surface drive can lift and steer system
  • A pair of high anti-corrosion, high toughness and strength two-way special stainless steel surface perforated propellers
  • Hydraulic and steering equipment
  • The body i s made of all 316L anticorrosive stainless steel
  • Indicators and sensors
  • Double hydraulic cylinder
  • Two kinds of adjustable movable and fixed semi-submerged propeller systems
  • Universal ball cage connection design

Performance Advantages

  • The water intake of the surface piercing propeller i s half of the water intake
  • 15% to 30% faster than traditional systems
  • 15% to 30% increase in fuel efficiency
  • The propeller i s ventilated to the water surface, thereby reducing noise and destructive hull and pillar erosion.
  • The maintenance requirements are low, and the propeller immersion can be adjusted in progress.

TDS Surface Drive Certification

Our propulsion system can pass the certification of major classification societies: ABS, CCS IS09001:2015/IS09001:2016 certification, and its activities incIude: marine supporting products (movabIe surface drive, fixed surface drive, gear box) design, development and manufacturing.
Product Paramater
  Adaptable blade diameter Adapted power Input torque Input RPM Dimensions Weight

Adapted ship weight

Standard accessories

BG550 500/550mm 60Hp-200Hp
1600 N.m
2800r/m 1210*750*550mm
95KG
Single machine2.5T
Dual machine 5T
Universal drive shaft/  oil pot/  oil shortage warning light/  anti-corrosion zinc block
BG600 600mm 150Hp-300Hp
2000 N.m
2500r/m 1308*800*600mm
108KG
Single machine 4.5T
Dual machine10T
Universal drive shaft/  oil pot/  oil shortage warning light/  anti-corrosion zinc block
BG660 660mm 250Hp-400Hp
3000 N.m
2200r/m 1418*871*660mm
130KG
Single machine 6T
Dual machine 15T
Universal drive shaft/ rudder angle table/        oil pot/oil shortage alarm lamp/ anti-corrosion zinc block
BG750 660/750mm 350Hp-600Hp
4500 N.m
2000r/m 1528*958*750mm
163KG
Single machine 10T
Dual machine 20T  Four  machine 40T
Universal drive shaft/ rudder angle table/      oil pot/oil shortage alarm lamp/ anti-corrosion zinc block
BG850 850/800mm 600Hp-1060Hp
7000 N.m
2000r/m 1635*1083*850mm
220KG
Single machine 13T
Dual machine 35T        Four machine 80T
Universal drive shaft/ rudder angle table/      oil pot/  oil shortage alarm lamp/  anti-corrosion zinc block

Download List

Name Introduction Size Downloads Update Category Thumbnail Copy Link Download
BG660.pdf 7.50MB 47 2022-11-28 Surface Paste Drawings download Copy Link Download

Recommended TF Series Gearbox

  •

     LQ200-1

     Input speedr/min

     1000-3000

     Input power K/w

     200-600

     Transmission capacity kw/r/min

     0.26

     (Increase) Reduction ratio

     1,1.2,1.5,1.7

     Bearing propeller thrust kN

     40

     Center distance

     190

     Net weight (kg)

     235

     Manipulation form

     Electronically controlled or push-pull flexible shaft

     Input connection

     Housing SAE 1#, 2#flywheel SAE 14
