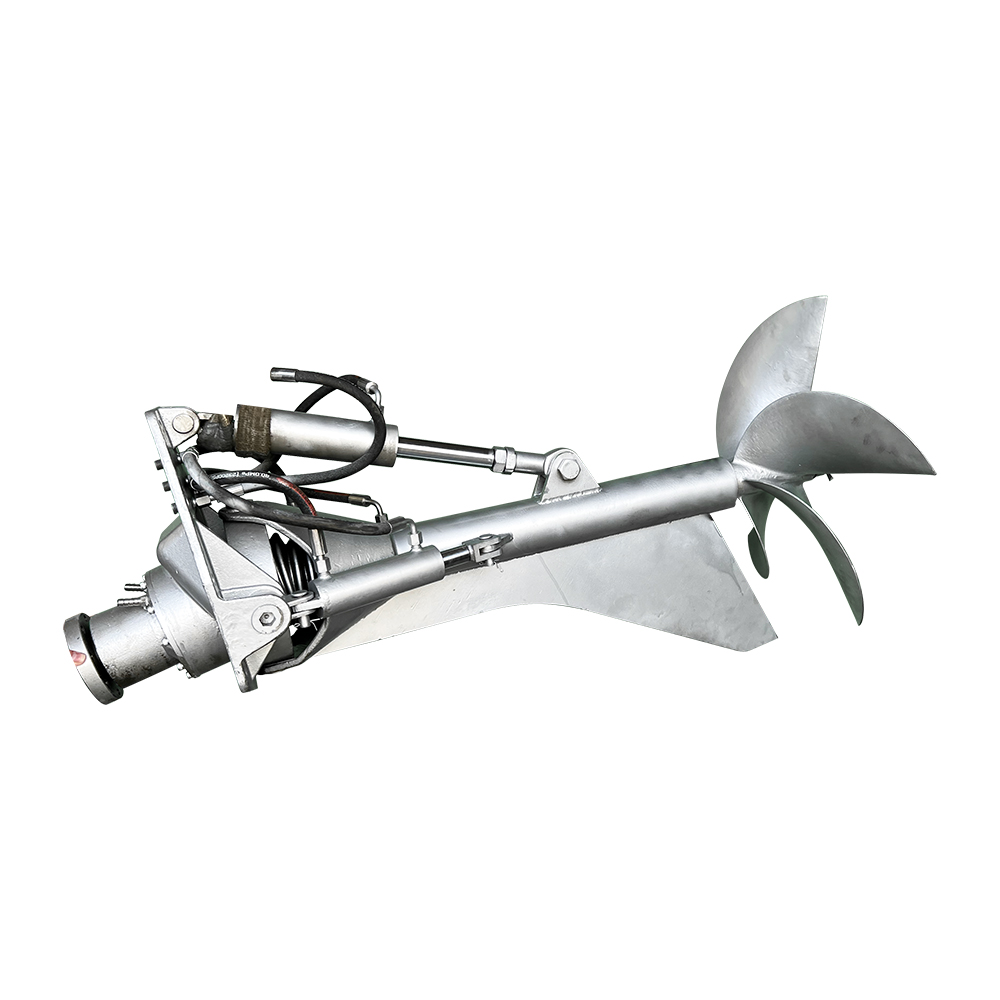

Marine Electric Drive System Super Diesel Drive Engine High Speed Surface Drive

  • BH600

  • TSD

  • 8487100000

Availability:

    The surface drive propulsion system (also known as semi-submerged propeller) independently developed by Tofoo Electronics Engineering Co., Ltd. for TSD type high-speed boats has been tested in Changsha, China, with a maximum measured speed of 78.9 km/h, which has been successfully used in high-speed boats. This technology has obtained a number of utility model patents and invention patents. The success of this test voyage fully demonstrated the maturity of the key technology and core technology of the high-speed surface propeller device, marking that the surface propeller device and surface propeller technology for domestic TSD high-speed boats have gradually matured, and the application direction of the product will be more mature. It is safe, efficient and cost-effective.

7


Product Name  BH600
Adaptable Blade Diameter 600mm
Adapted Power 200-300Ps
Input Torque N.m 1600N.m
Single Machine Weight (Kg) 120Kg
Maximum Suitable Ship Weight for Single 5T
Maximum Suitable Ship Weight for Dual  10T
Standard Accessories Cardan Shaft, Hydraulic Lifting Station, Oil Pot(alarm)
Number of Blade 4//5/6
Minimum Intput Speed of Main Engine R/Min 1000
Maximum Intput Speed of Host R/Min 2500
