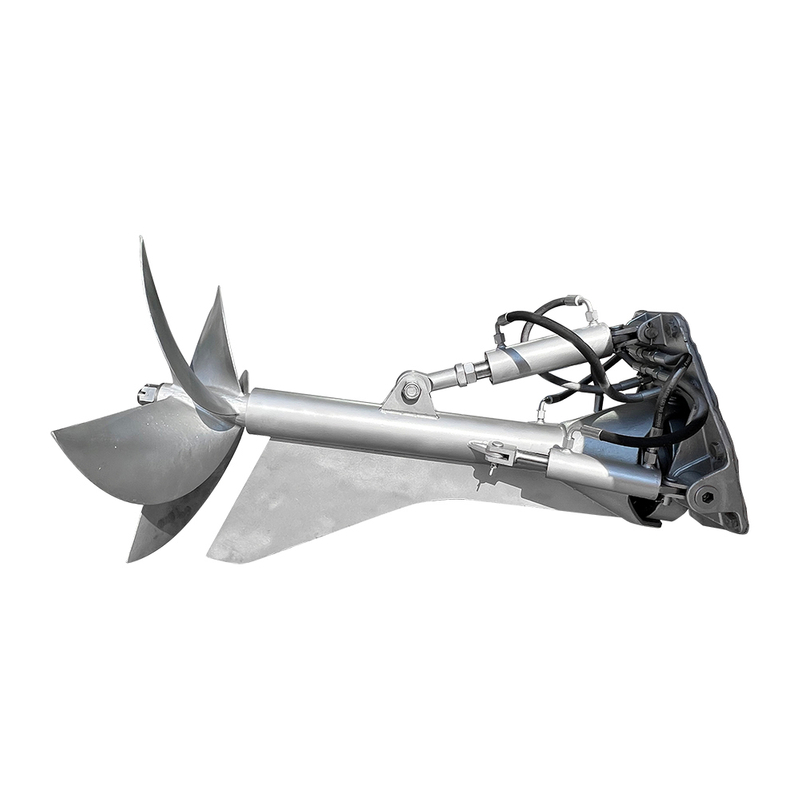

BH550 High Quality Maeine Equipment Movable Surface Drive System

  • BH550

  • TSD

  • 8487100000

Availability:

    The surface drive propulsion system (also known as semi-submerged propeller) independently developed by Tofoo Electronics Engineering Co., Ltd. for TSD type high-speed boats has been tested in Changsha, China, with a maximum measured speed of 78.9 km/h, which has been successfully used in high-speed boats. This technology has obtained a number of utility model patents and invention patents. The success of this test voyage fully demonstrated the maturity of the key technology and core technology of the high-speed surface propeller device, marking that the surface propeller device and surface propeller technology for domestic TSD high-speed boats have gradually matured, and the application direction of the product will be more mature. It is safe, efficient and cost-effective.

surface drive propeller

Model BH550
Adapted Blade Diameter (mm) 500/550
Adapted Power 150Hp-250Hp
Maximun Input Torque 1200N.m
Weight (kg) 85kg
Adapted Ship Weight Single/Dual (kg) 3T/6T
Min/Max Input Engine Speed R/min
1000/2500
Standard Accessories
Cardan draft, hydraulic lifting station, oil pot (alarm)
Certificate
CCS/ABC

874a9f98230a20bbd48c2a057960349


c05a7f75ae98702ee28c3d497cf52cc



3f5e0bfc610c6812643a6938768114e
